รายละเอียดสินค้า:
การชำระเงิน:
|
| Piston Type: | refrigeration system | Configuration: | Stationary |
|---|---|---|---|
| Power Source: | AC Power | Lubrication Style: | Lubricated |
| Gas: | R22 | Drive Mode: | Electric |
| Weight: | 90 KGS | Voltage: | 380V |
| Color: | Blue | ||
| แสงสูง: | screw type air compressor,scroll compressor refrigeration |
||

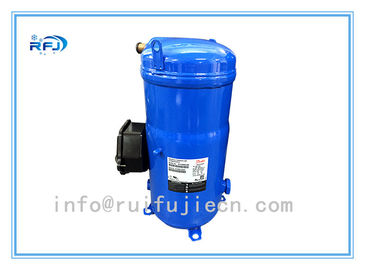

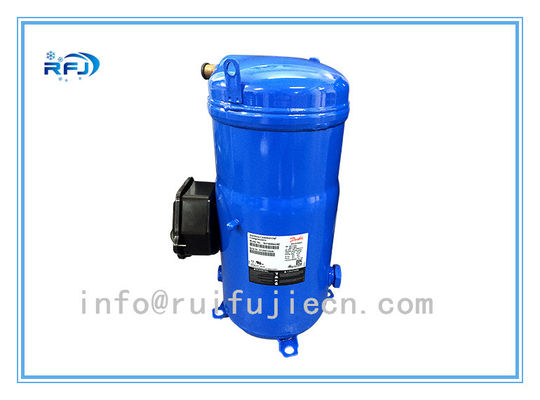

10HP Scroll Refrigeration Compressors Air Conditioning refrigeration system SM125 Performer
1. SM/SY series for R22
2. SZ series for R407c
3. Horse power range from 7 HP to 25 hp
SM/SZ series.
*7 to 25 HP.
*R22/R407C refrigerant
COMPRESSOR MODELS FOR R22:
SM084
SM090
SM100
SM110
SM115
SM120
SM125
SM148
SM160
SM161
SM175
SM185
SY240
SY300
SM series:
SM084-4VM(7HP)
SM090-4VM(7.5HP)
SM100-4VM(8HP)
SM110-4VM(9HP)
SM115-4VM(9.5HP)
SM120-4VM(10HP)
SM125-4VM(10HP)
SM148-4VM(12HP)
SM160-4VM(13HP)
SM185-4VM(15HP)
SZ seires:
SZ084-4VM(7HP)
SZ090-4VM(8HP)
SZ100-4VM(8HP)
SZ110-4VM(9HP)
SZ120-4VM(10HP)
SZ148-4VM(12HP)
SZ161-4VM(13HP)
SZ/Y185-4VM(15HP)
We can supply more compressor models as below:
| 50Hz Data | |||||||||
| Model | Nominal Cap. 60HZ |
Nominal cooling capacity | Power input | Cop | E.E.R. | Swept Volume | Displacement | Oil charge | |
| TR | W | Btu/h | KW | W/W | Btu/h/W | cm/rew | m/h | dm | |
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 114.5 | 19.92 | 3.3 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 120.5 | 20.97 | 3.3 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 127.2 | 22.13 | 3.3 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 144.2 | 25.09 | 3.3 |
| SM112 | 9.5 | 27600 | 94400 | 7.92 | 3.49 | 11.9 | 151.5 | 26.36 | 3.3 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 155 | 26.97 | 3.8 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 166.6 | 28.99 | 3.3 |
| SM124 | 10 | 31200 | 106300 | 8.75 | 3.56 | 12.2 | 169.5 | 29.5 | 3.3 |
| SM125 | 10 | 30100 | 102800 | 8.93 | 3.37 | 11.5 | 166.6 | 28.99 | 3.8 |
| SM147 | 12 | 36000 | 123000 | 10.08 | 3.58 | 12.2 | 193.5 | 33.7 | 3.3 |
| SM148 | 12 | 36100 | 123100 | 10.8 | 3.34 | 11.4 | 199 | 34.6 | 3.6 |
| SM160 | 13 | 39100 | 133500 | 11.6 | 3.37 | 11.5 | 216.6 | 37.69 | 4 |
| SM161 | 13 | 39000 | 133200 | 11.59 | 3.37 | 11.5 | 216.6 | 37.69 | 3.6 |
| SM175 | 14 | 42000 | 143400 | 12.46 | 3.37 | 11.5 | 233 | 40.54 | 6.2 |
| Model | Refrigerant | Power | Net Weight |
| SZ100-3/9VM | R134A/R407C | 8HP | 72KG |
| SZ110-3/9Vm | 9HP | 72KG | |
| SZ120-3/9VM | 10HP | 80KG | |
| SZ125-3RM | 10HP | 80KG | |
| SZ148-3/9VAM | 12HP | 86KG | |
| SZ161-T3/9VC | 13HP | 86KG | |
| SZ/Y185-3/9CAM | 15HP | 103KG | |
| SZ240A3/9CBM | 20HP | 160KG | |
| SZ300A3/9CBM | 25HP | 160KG | |
| SM084-4VM | R22 | 7HP | 72KG |
| SM090-4VM | 7.5HP | 72KG | |
| SM100-4VM | 8HP | 72KG | |
| SM110-4VM | 9HP | 80KG | |
| SM112A4ACB | 9HP | 80KG | |
| SM115-4CAM | 9.5HP | 80KG | |
| SM120-4VM | 10HP | 80KG | |
| SM148-4VAM | 12HP | 86KG | |
| SM125-4CAM | 10HP | 80KG | |
| SM124A4ACB | 10HP | 80KG | |
| SM147A4ACB | 12HP | 86KG | |
| SM161-4VAM | 13HP | 86KG | |
| SM160-4CBM | 13HP | 93KG | |
| SM175-4CAM | 14HP | 103KG | |
| SM175-4RM | 14HP | 103KG | |
| SM185-4CAM | 15HP | 103KG | |
| SM185-4RM | 15HP | 103KG | |
| SY240A4CBM | 20HP | 160KG | |
| SY300ACBM | 25HP | 160KG | |
| SY300A4CAM | 25HP | 160KG | |
| SY380A4CBM | 31HP | 225KG |
