รายละเอียดสินค้า:
การชำระเงิน:
|
| Piston Type: | Scroll | Power Source: | AC Power |
|---|---|---|---|
| Drive Mode: | Electric | Horse Power: | 9HP |
| Configuration: | Stationary | Mute: | Yes |
| Voltage: | 380/420v | connection: | Rotalock |
| Electric supply: | 3ph 50hz | ||
| แสงสูง: | copeland a c compressor,commercial refrigeration compressor |
||

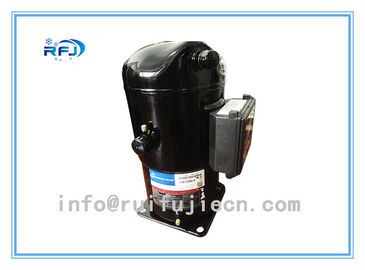

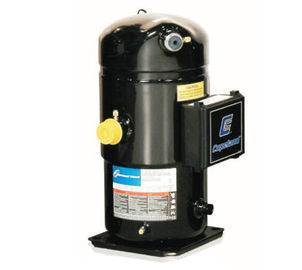

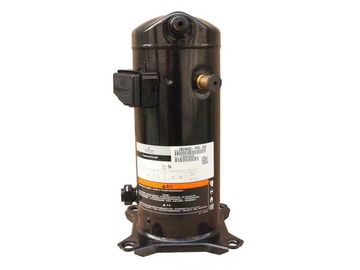

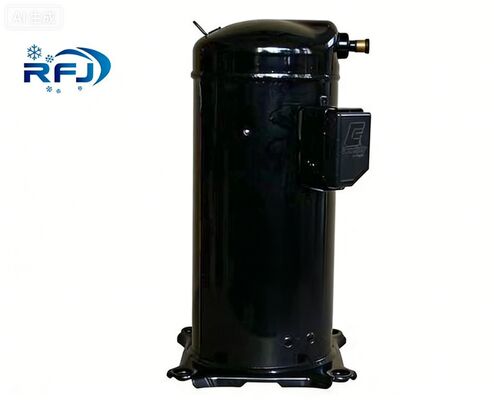

Copeland Refrigeration ZR11M3E-TWD-961 Hermetic piston scroll compressor
Specifications:
ZR Copeland scroll compressors for air conditioning applications
Description:
1. Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....
2. The are Copeland scroll compressors, can be used for air conditioning and refrigeration.
3. We have models made in China,Thailand and Belguim.

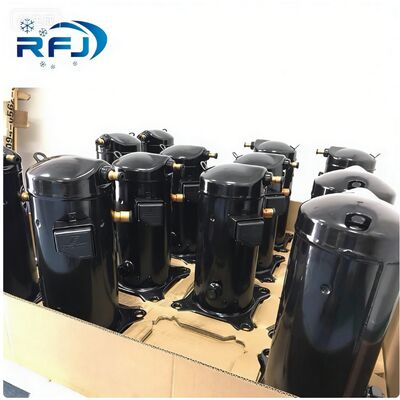

4. 12 units packing with one pallet.
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
| Brand: | Copeland |
|---|---|
| Connection: | Rotalock |
| Dim 1 (mm): | 525 |
| Model Number: | ZR 11M3E TWD 961 |
| Voltage: | 380/420 |
| Warranty: | 1 Year |
| Depth With Decoration Panel (mm): | 319 |
| Displacement CC: | 25,1 |
| Electric Supply: | 380-420V / 50Hz / 3ph |
| Electrical Rating: | 20 |
| Phase: | Three Phase |
| Refrigerant: | Refer to Copeland literature for approved refrigerants |
| Refrigerant Suitability: | R407C;R134A;R22 |
| Tube Connection Size (mm): | - |
| Valve Connections: | 1.3/8 |
| Width With Decoration Panel (mm): | 357 |
| Horse Power: | 9.0 |
| Application Temperature (C): | - |
| Application Temperature (C): | - |
| Nominal motor power [HP]: | 9 | |
| Displacement [m³/h]: | 25,1 | |
| Sound pressure level : | 67 | |
| Gross/Net weight [kg]: | 107/96 | |
| Oil charge [dm³]: | 4,1 |
| Power supply [V/~/Hz]: | 1 3/8" | |
| Locked rotor current [A]: | 7/8" | |
| Max. operating current [A]: | 1 1/4" | |
| Winding resistance [Ω]: | 319/357 |
| milimeters | inches | ||
| Suction Rotolock valve connection: | 1 3/4" | ||
| Discharge Rotolock valve connection: | 1 1/4" | ||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |
| Phase | Model | Horse Power/HP | Displacement (m3/h) | ARI 7.2/54.4°C | Weight/Kg | Height /mm | |
| Cooling (W) | Input (W) | ||||||
| 1 Phase | ZR16K3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
| ZR20K3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
| ZR22K3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 | |
| ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 | |
| ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 | |
| ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 | |
| ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 | |
| ZR32K3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 | |
| ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 | |
| ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 | |
| ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
| ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 | |
| ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
| 3 Phase | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 | |
| ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 | |
| ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 | |
| ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 | |
| ZR32K3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 | |
| ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 | |
| ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 | |
| ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
| 2ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 | |
| ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 | |
| ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 | |
| ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
| ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 | |
| ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 | |
| ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 | |
| ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 | |
| ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 | |
| ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 | |
| ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 | |
| ZR84KC-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 | |
| ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
| ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
| ZR125KC-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 | |
| ZR90K3-TWD | 7.5 | 20.9 | 21540 | 6620 | 91 | 542 | |
| ZR11M3-TWD | 9 | 24.9 | 25840 | 7805 | 91 | 542 | |
| ZR12M3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
| ZR16M3-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 | |
| ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 | |
