| Place of Origin: | Thailand | Type: | Refrigeration Compressor |
|---|---|---|---|
| Application:: | Refrigeration Parts | Horse power:: | 9hp |
| Refrigeration Capacity: | 26250 W | Out put power: | 6630 W |
| Weight: | 70KG | Height: | 533 MM |
| แสงสูง: | copeland ac compressor,copeland a c compressor |
||

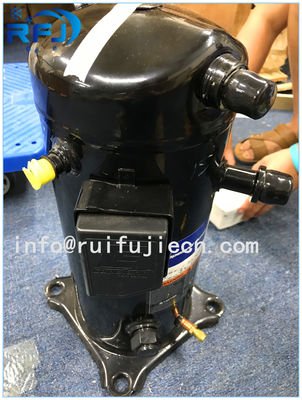

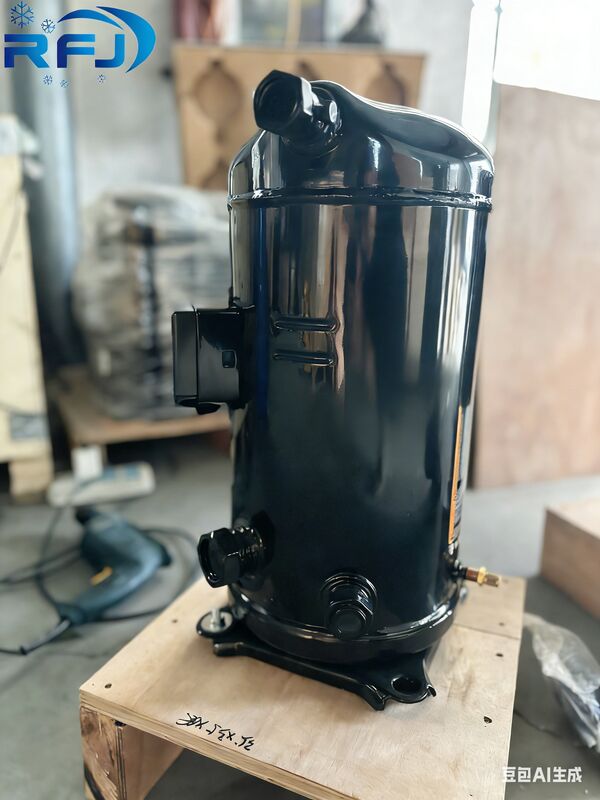

Widely used 9hp copeland zr compressor ZR108KC-TFD-522 with r22
Copeland scroll compressor ZR108KC-TFD-522
1. Copeland compressor ZR36K3-TFD-522 have Ultra high energy efficiency.
2. High Heat Pump Capacity Due to Nearly 100% Volumetric Efficiency.
3. Wide Selection Range
50 Hertz 18200 to 68000 BTUH
4590 to 17100 KCALH
5330 to 19900 WATTS .
4. Fewer Moving Parts
5.The motor can effectively protect the motor from the damage of high temperature and high voltage current, low noise low exhaust impulse noise value is lower than piston compressor 5 dB.
6. Rugged Design and Proven Durability.
7. Unloaded Start Feature Requires No Start Capacitors
8. Straight Suction Tube Allows For Low Profile Application
9. Performance Improves as Scroll Sets Wear-In
10. Internal Motor Protection with Start Winding Protection on Single Phase Models
| Models | Horse pressure(HP) | Capacity(w) | Input power(kw) | Input current(A) | Bottom size(mm) | Weight (kg) | Height(mm) |
| R22 | |||||||
| ZR24K3-TFD-522 | 2 | 5920 | 1.87 | 4.3 | 190 | 25.9 | 383 |
| ZR28K3-TFD-522 | 2.5 | 6910 | 2.15 | 5 | 190 | 26.3 | 383 |
| ZR34K3-TFD-522 | 2.8 | 8200 | 2.52 | 5.7 | 190 | 28 | 406 |
| ZR36K3-TFD-522 | 3 | 8900 | 2.7 | 5.7 | 190 | 28 | 406 |
| ZR42K3-TFD-522 | 3.5 | 10100 | 3.12 | 7.1 | 190 | 28.6 | 419 |
| ZR47KC-TFD-522 | 4 | 11500 | 3.53 | 7.2 | 190 | 28.6 | 436 |
| ZR54KC-TFD-522 | 4.5 | 12900 | 4.03 | 8.7 | 190 | 35.4 | 457 |
| ZR57KC-TFD-522 | 4.8 | 13700 | 4.16 | 8.7 | 190 | 35.4 | 457 |
| ZR61KC-TFD-522 | 5 | 14600 | 4.43 | 10 | 190 | 35.8 | 457 |
| ZR68KC-TFD-522 | 5.8 | 16400 | 4.97 | 12.1 | 190 | 38.1 | 457 |
| ZR72KC-TFD-522 | 6 | 17400 | 5.25 | 12.1 | 190 | 38.1 | 457 |
| ZR81KC-TFD-522 | 6.8 | 19690 | 5.83 | 15 | 190 | 40.9 | 462 |
| ZR84KC-TFD-522 | 7 | 20330 | 6.14 | 15 | 190 | 56.7 | 497 |
| ZR94KC-TFD-522 | 8 | 22940 | 7 | 16.4 | 190 | 58 | 497 |
| ZR108KC-TFD-522 | 9 | 26250 | 7.83 | 17.3 | 190 | 63 | 552 |
| ZR125KC-TFD-522 | 10 | 30470 | 9.06 | 19.2 | 190 | 63 | 552 |
| ZR144KC-TFD-522 | 12 | 34730 | 10.87 | 19.6 | 190 | 63 | 552 |
| ZR160KC-TFD-522 | 13.33 | 37330 | 11.17 | 25 | 220 | 98 | 553 |
| ZR190KC-TFD-522 | 15.8 | 45170 | 13.4 | 27.2 | 220 | 112 | 598 |
| ZR11M3-TWD-551 | 9 | 25840 | 7.8 | 17.8 | 220 | 91 | 553 |
| ZR12M3-TWD-551 | 10 | 29890 | 8.95 | 17.9 | 220 | 92 | 553 |
| ZR16M3-TWD-551 | 13 | 37330 | 11.17 | 25 | 220 | 98 | 553 |
| ZR19M3-TWD-522 | 15 | 45170 | 13.4 | 27.2 | 220 | 112 | 598 |
| ZR250KC-TWD-522 | 20 | 60000 | 17.7 | 34 | 142 | 736 | |
| ZR310KC-TWD-522 | 25 | 74000 | 22 | 41.4 | 160 | 734 | |
| ZR380KC-TWD-522 | 30 | 92000 | 26.9 | 62.5 | 176 |
734 |
