รายละเอียดสินค้า:
การชำระเงิน:
|
| Model NO: | AD452R4F | Type: | Water-Cooled |
|---|---|---|---|
| Cooling Water: | Cooling Water | System Type: | Closed System |
| Fans Species: | Double-speed fan | Noise Level: | Low |
| Application Fields: | Food Processing | Condition: | New |
| Refrigerant: | R22/R134 | Color: | White |
| Voltage: | 220V | Usage: | Cold Room |
| Temperature: | -25, -18, -5, 0 | Transport Package: | Customerized Packing |
| แสงสูง: | air cooled condenser in refrigeration,air cooled condensing unit |
||

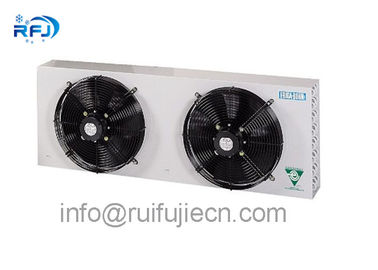

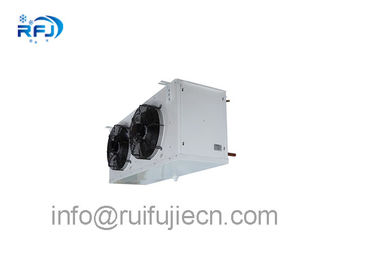

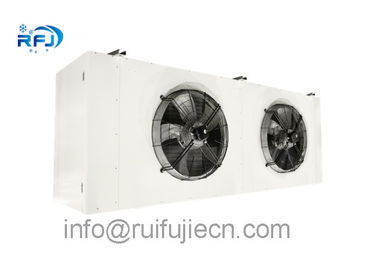

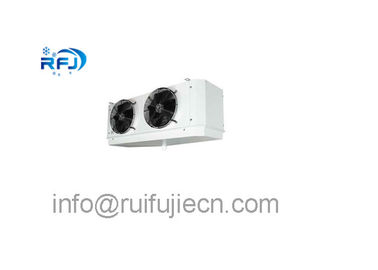

R404a air cooled cold room evaporator with unit cooler
| AD duaI discharge cooIers | ||||||||||
| 450mm | Fin Spacing 7mm | acing 4.5mm | ||||||||
| Models | AD452R4F | AD452R6F | AD453R4F | AD453R6F | AD454R6F | |||||
| SC1 KW | Ta -10℃ R22 | 17.2 | 21 | 26.2 | 31.8 | 43.8 | ||||
| Te -0℃ R404A | 17.2 | 22.2 | 26.2 | 31 | 43 | |||||
| Tube Length m | 127 | 190 | 190 | 285 | 380 | |||||
| Surface ㎡ | 48.8 | 73.2 | 73.2 | 109.9 | 146.5 | |||||
| Circuit Vol. dm³ | 10 | 15 | 15 | 22.5 | 30 | |||||
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |||||
| Air Flow m³/h | 7200 | 6900 | 10800 | 10350 | 13800 | |||||
| Air Throw m | 12 | 12 | 12 | 12 | 12 | |||||
| Fan Mot.Amper A | 1.2 | 1.2 | 1.8 | 1.8 | 2.4 | |||||
| Fan Mot.Power W | 500 | 500 | 750 | 750 | 1000 | |||||
| in Tube Inch. | 1/2 | 5/8 | 5/8 | 7/8 | 7/8 | |||||
| Out Tube Inch | 7/8 | 11/8 | 11/8 | 13/8 | 13/8 | |||||
| Net Weight kg | 109 | 120 | 159 | 176 | 216 | |||||
| Drawing No. | ㉞ | ㉞ | ㉟ | ㉟ | ㊱ | |||||
| ⑳ | ||||||||||
| 450mm | Fin Spacing 7mm | acing 7mm | ||||||||
| Models | AD452C4 | AD452C6 | AD453C4 | AD453C6 | AD454C6 | |||||
| SC2 KW | Ta 0℃ R22 | 10 | 11.8 | 14.8 | 19.4 | 24.8 | ||||
| Te -8℃ R404A | 10 | 11.4 | 14.6 | 19.2 | 26.6 | |||||
| SC1 KW | Ta -10℃ R22 | 14.4 | 17.2 | 21.2 | 28 | 38.2 | ||||
| Te -0℃ R404A | 14.2 | 16.6 | 20.8 | 27.4 | 37.6 | |||||
| Tube Length m | 127 | 190 | 190 | 285 | 380 | |||||
| Surface ㎡ | 32.7 | 49.1 | 49.1 | 73.6 | 98.1 | |||||
| Circuit Vol. dm³ | 10 | 15 | 15 | 22.5 | 30 | |||||
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |||||
| Air Flow m³/h | 7600 | 7200 | 11400 | 10800 | 14400 | |||||
| Air Throw m | 12 | 12 | 12 | 12 | 12 | |||||
| Fan Mot.Amper A | 1.2 | 1.2 | 1.8 | 1.8 | 2.4 | |||||
| Fan Mot.Power W | 500 | 500 | 750 | 750 | 1000 | |||||
| Electric Defrost A | 10.9 Y | 10.9 Y | 16.4 Y | 16.4 Y | 21.8 Y | |||||
| Electric Defrost W | 7200 | 7200 | 10800 | 10800 | 14400 | |||||
| In Tube Inch. | 1/2 | 1/2 | 5/8 | 7/8 | 7/8 | |||||
| Out Tube Inch | 7/8 | 7/8 | 11/8 | 13/8 | 13/8 | |||||
| Net Weight kg | 108 | 119 | 158 | 175 | 215 | |||||
| Drawing No. | ㉞ | ㉞ | ㉟ | ㉟ | ㊱ | |||||
| AE UItra Iow ProfiIe cooIers | ||||||||||
| 300mm | Finspcing3.5mm | |||||||||
| Models | AE301A4F | AE301A6F | AE302A3F | AE302A4F | AE302A6F | AE303A4F | AE303A6F | AE304A6F | ||
| Ta -10℃ R22 | 2.3 | 2.7 | 3.9 | 4.7 | 5.5 | 7 | 8 | 9.4 | ||
| Te -0℃ R404A | 2.3 | 2.8 | 3.9 | 4.7 | 5.5 | 7 | 8.1 | 9.5 | ||
| Tube Length m | 13 | 19 | 19 | 26 | 39 | 39 | 58 | 71 | ||
| Surface ㎡ | 6.3 | 9.5 | 9.5 | 12.6 | 18.9 | 18.9 | 28.4 | 34.7 | ||
| Circuit Vol. dm³ | 1 | 1.5 | 1.5 | 2 | 3.1 | 3.1 | 4.6 | 5.6 | ||
| Fan Mot.No. | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | ||
| Air Flow m³/h | 1000 | 850 | 2160 | 2000 | 1700 | 3000 | 2550 | 3200 | ||
| Air Throw m | 3 | 3 | 5 | 4 | 4 | 6 | 5 | 7 | ||
| Fan Mot.Amper A | 0.42 | 0.42 | 0.84 | 0.84 | 0.84 | 1.26 | 1.26 | 1.68 | ||
| Fan Mot.Power W | 85 | 85 | 170 | 170 | 170 | 255 | 255 | 340 | ||
| In Tube Inch. | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | ||
| Out Tube Inch | 5/8 | 5/8 | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 | 7/8 | ||
| Net Weight kg | 13 | 16 | 19 | 22 | 28 | 32 | 40 | 52 | ||
| Drawing No. | ㊲ | ㊲ | ㊳ | ㊳ | ㊳ | ㊴ | ㊴ | ㊵ | ||
| 300mm | Fin Spacing 7mm | |||||||||
| Models | AE301C4 | AE301C6 | AE302C3 | AE302C4 | AE302C6 | AE303C4 | AE303C6 | AE304C6 | ||
| SC2 KW | Ta 0℃ R22 | 1.3 | 1.6 | 2.2 | 2.6 | 3.2 | 4 | 4.9 | 5.9 | |
| -8℃ R404A | 1.3 | 1.6 | 2.3 | 2.7 | 3.3 | 4.1 | 4.9 | 6 | ||
| SC3 KW | Ta -18℃ R22 | 0.9 | 1.1 | 1.5 | 1.9 | 2.3 | 2.7 | 3.2 | 3.8 | |
| Te -25℃ R404A | 0.9 | 1.1 | 1.5 | 1.9 | 2.3 | 2.7 | 3.3 | 3.9 | ||
| Tube Length m | 13 | 19 | 19 | 26 | 39 | 39 | 58 | 71 | ||
| Surface ㎡ | 3.4 | 5 | 5 | 6.7 | 10.1 | 10.1 | 15.1 | 18.4 | ||
| Circuit Vol. dm³ | 1 | 1.5 | 1.5 | 2 | 3.1 | 3.1 | 4.6 | 5.6 | ||
| Fan Mot.No. | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | ||
| Air Flow m³/h | 1150 | 1020 | 2500 | 2300 | 2040 | 3450 | 3060 | 4000 | ||
| Air Throw m | 4 | 4 | 6 | 5 | 5 | 7 | 6 | 8 | ||
| Fan Mot.Amper A | 0.42 | 0.42 | 0.84 | 0.84 | 0.84 | 1.26 | 1.26 | 1.68 | ||
| Fan Mot.Power W | 85 | 85 | 170 | 170 | 170 | 255 | 255 | 340 | ||
| Electric Defrost A | 4.5 | 6.8 | 9.1 | 9.1 | 13.6 | 13.6 | 20.5 | 24.5 | ||
| Electric Defrost W | 1000 | 1500 | 2000 | 2000 | 3000 | 3000 | 4500 | 4500 | ||
| In Tube Inch. | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | ||
| Out Tube Inch | 5/8 | 5/8 | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 | 7/8 | ||
| Net Weight kg | 13 | 16 | 19 | 22 | 28 | 32 | 40 | 52 | ||
| No. | ㊲ | ㊲ | ㊳ | ㊳ | ㊳ | ㊴ | ㊴ | ㊵ |
