| Product Name: | condensing unit | type: | semi-hermetic condensing unit |
|---|---|---|---|
| Horse power: | 3HP-50HP | Cooling Method: | Direct Cooling |
| Application: | Cold room | Brand: | Global |
| Cool Type: | Air-cooled | Structural Form: | Horizontal |
| Color: | Green | Lubricated: | 3GS oil SUNISO SL32S |
| แสงสูง: | ac condenser unit,bitzer condenser unit |
||

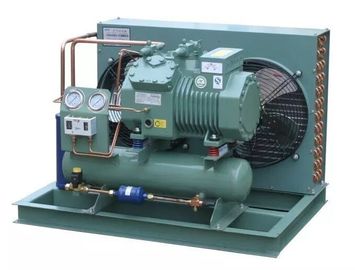

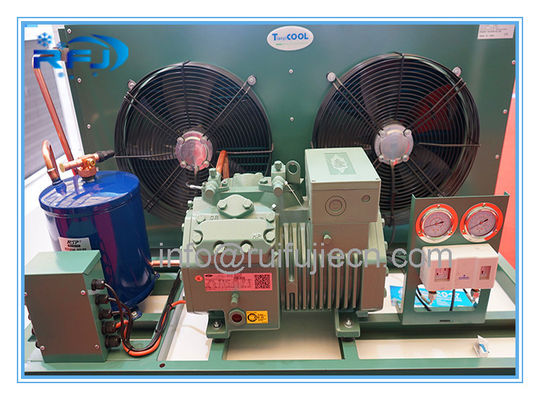

Technical Data for Air-cooled condensing unit with medium & High Temperature
Main Parts Instructions
Main Parts: 1)Semi-hermetic Compressor 2)Crankcase heater 3)Air Cooled Condenser 4)Liquid storage device 5)Filter 6)Liquid Sight Gauge 7)Hand Valve 8)Gas-liquid Separator 9)High&Low Voltage Controller 10)High&Low Pressure Gauge 11)Electronic Oil Pressure Diff. 12)Electrical Box 13)Fan(for split type low temperature units)
1. Refrigerant: R22; Temperature:-5°C~ 5°C;
Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C;Suction superheat 10°C.
| Condensing Unit | Compressor Model | Overall Size | Installation Size | ||||
| A | B | C | D | E | |||
| SPB03KM | 2DES-3Y | 680 | 680 | 600 | 640 | 400 | 4-φ17 |
| SPB04KM | 2CES-4Y | 780 | 680 | 700 | 740 | 400 | 4-φ17 |
| SPB05KM | 4FES-5Y | 880 | 680 | 800 | 840 | 480 | 4-φ17 |
| SPB06KM | 4EES-6Y | 880 | 760 | 800 | 840 | 480 | 4-φ17 |
| SPB07KM | 4DES-7Y | 1130 | 760 | 700 | 1090 | 480 | 4-φ17 |
| SPB09KM | 4CES-9Y | 1130 | 760 | 700 | 1090 | 480 | 4-φ17 |
| SPB10KM | 4VES-10Y | 1130 | 760 | 800 | 1090 | 480 | 4-φ17 |
| SPB12KM | 4TES-12Y | 1340 | 860 | 760 | 1300 | 580 | 4-φ17 |
| SPB15KM | 4PES-15Y | 1490 | 860 | 960 | 1450 | 580 | 4-φ17 |
| SPB20KM | 4NES-20Y | 1490 | 860 | 960 | 1450 | 580 | 4-φ17 |
| SPB25KM | 4HE-25Y | 1590 | 860 | 960 | 1550 | 580 | 4-φ20 |
| SPB30KM | 4GE-30Y | 1590 | 860 | 1360 | 1550 | 580 | 4-φ20 |
| SPB35KM | 6HE-35Y | 1040 | 360 | 800 | 800 | 320 | 4-φ20 |
| SPB40KM | 6GE-40Y | 1190 | 360 | 860 | 950 | 320 | 4-φ20 |
| SPB50KM | 6FE-50Y | 1490 | 360 | 860 | 1250 | 320 | 4-φ20 |
