| Condition: | New | Type: | Scroll |
|---|---|---|---|
| Configuration: | Stationary | Power Source: | AC Power |
| Lubrication Style: | Oil-less | Mute: | Yes |
| Place of Origin: | Japan | Dimension: | 28.5*27.5*46cm |
| Weight: | 37kg | ได้รับการรับรอง: | CE,CCC,RoHs |
| Refrigerant: | R22 | Color: | Black |
| Power: | 57290 BTU | Capacity: | 13500w |
| COP: | 3.4W/W | Net weight: | 35kg |
| Delivey date: | 5-7days | ||
| แสงสูง: | hitachi refrigeration compressor,hitachi ac compressor |
||

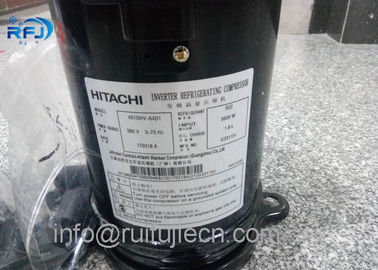

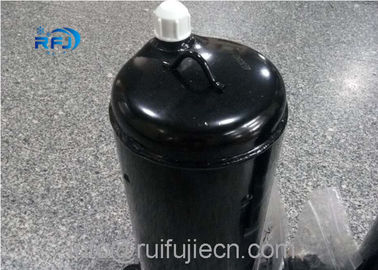

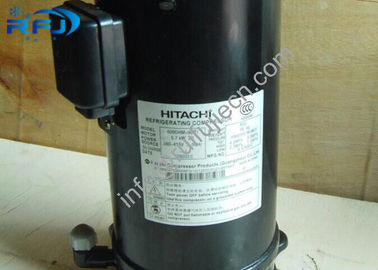

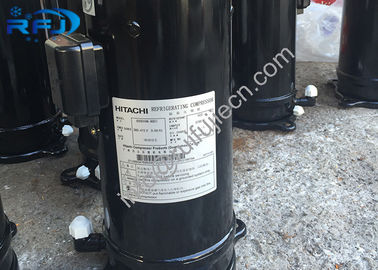

Hitachi Scroll Air Compressor 600DHM-90D1 with R22 gas
Packaging & Delivery
PPackaging Details:
BBy Sea:Export wooden package,with refrigerant oil
BBy Air :Full-sealed wooden package, without refrigerant oil.
DDelivery Detail:
3-5days
Hitachi Refrigerator Compressor all models
1,303DH,353DH,403DH,453DH,503DH,603DH
2,Refrigerant:R22
3,Voltage:220V~380V~440V
HHitachi Scroll Compressors R-22 Fixed Speed(50HZ)
FFeatures:
1,High efficiency, high reliability, small size, lightweight, low vibration and low noise have been key demands of the present age in the air- conditioning compressor.
2,HITACHI proudly presents the scroll compressor to answer these demands. It is completely new and revolutionary in construction including the following features.
3,WORLD FIRST IN SCROLL COMPRESSORS
4,FEWER PARTS
5,HIGH EFFICIENCY
6,LOW SOUND, LOW VIBRATION
7,HIGH RELIABILITY
8,WIDE OPERATING RANGE
Technical Datas:
| Q POWER TYPE FIX SPEED (POWER:1φ-220V-50Hz) | |||||||||
| Model | Refrigerant | Colling Capacity | Testing Condition | Motor Input | Current | COP | Oil Charge | ||
| BTU/H | WATTS | WATTS | RLA | W/W | L | ||||
| 303DH-47Q2 | R22 | 29500 | 8980 | 220V 1~50Hz | 2860 | 12.9 | 3.14 | 1.2 | |
| 303DH-50Q2 | 32050 | 9680 | 3070 | 13.4 | 3.14 | 1.2 | |||
| 353DH-56Q2 | 34780 | 10500 | 3500 | 16.2 | 3 | 1.2 | |||
| 403DH-64Q2 | 40240 | 12150 | 4070 | 18 | 3 | 1.2 | |||
| B POWER TYPE FIX SPEED (POWER: 3φ-220V-50Hz) | |||||||||
| Model | Refrigerant | Colling Capacity | Test Condition | Motor Input | Current | COP | Oil Charge | ||
| BTU/H | WATTS | WATTS | RLA | W/W | L | ||||
| STANDRAD TYPE | 303DH-47C2 | R22 | 29500 | 8650 | 380V 3~50Hz | 2700 | 5 | 3.2 | 1.2 |
| 303DH-50C2 | 32220 | 9450 | 2900 | 5.4 | 3.2 | 1.2 | |||
| 353DH-56C2 | 35460 | 10400 | 3200 | 6.2 | 3.25 | 1.2 | |||
| 403DH-64C2 | 40240 | 11800 | 3600 | 6.8 | 3.25 | 1.2 | |||
| 453DH-72C2 | 46040 | 13500 | 4000 | 7.6 | 3.4 | 1.4 | |||
| 503DH-80C2 | 50800 | 14900 | 4400 | 8.1 | 3.4 | 1.4 | |||
| 503DH-83C2 | 52510 | 15400 | 4550 | 8.6 | 3.4 | 1.4 | |||
| 603DH-90C2 | 57290 | 16800 | 5100 | 9.5 | 3.3 | 1.4 | |||
| 603DH-95C2 | 60020 | 17600 | 5300 | 10 | 3.3 | 1.4 | |||
| PARALLEL TYPE | 303DH-47C2Y | 29500 | 8650 | 2700 | 5 | 3.2 | 1.8 | ||
| 303DH-50C2Y | 32220 | 9450 | 2900 | 5.4 | 3.2 | 1.8 | |||
| 353DH-56C2Y | 35460 | 10400 | 3200 | 6.2 | 3.25 | 1.8 | |||
| 403DH-64C2Y | 40240 | 11800 | 3600 | 6.8 | 3.25 | 1.8 | |||
| 453DH-72C2Y | 46040 | 13500 | 4000 | 7.6 | 3.4 | 1.8 | |||
| 503DH-80C2Y | 50800 | 14900 | 4400 | 8.1 | 3.4 | 1.8 | |||
| 503DH-83C2Y | 52510 | 15400 | 4550 | 8.6 | 3.4 | 1.8 | |||
| 603DH-90C2Y | 57290 | 16800 | 5100 | 9.5 | 3.3 | 1.8 | |||
| 603DH-95C2Y | 60020 | 17600 | 5300 | 10 | 3.3 | 1.8 | |||
