| Brand: | RFJ | VOlt: | 380V/50HZ-460V/60HZ |
|---|---|---|---|
| dimension(MM): | 860*310*650 | installation size(mm): | 630*350 |
| installation bore: | 13 | returngas(mm): | 28*16 |
| แสงสูง: | ac condenser unit,air cooled condensing unit |
||

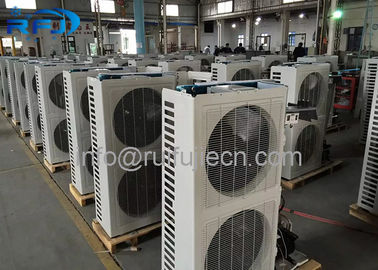

BOX TYpe Compressor Condensing Unit
AXX series unit is specially designed for meeting the demand on market. We adopt high-efficiency copper tube aluminum heat exchanger,with premium refrigeration accessories.It`s compact in structure.original in design.elegant in style,long in service life,easy for installation. It`s widely applied to refrigeration equipment for cold storage and food showcase.
| model | condenser | poer supply | fan motor | Specifications of connecting tube | ||||||
| model | nominal power(HP) | refrigerating capacity(W) | 380V 3PH 50HZ | Dia of fan (mm) | volume(m3/h) | power(w) | returngas(mm) | outlet(mm) | ||
| AX-XQ02HZ | ZB15KQ | 2HP | 5500 | 420 | 3200 | 60 | 16 | 10 | ||
| AX-XQ03HZ | ZB21KQ | 3HP | 7900 | 450 | 5800 | 60 | 16 | 10 | ||
| AX-XQ04HZ | ZB29KQ | 4HP | 10620 | 450 | 2*5800 | 2*60 | 22 | 12 | ||
| AX-XQ05HZ | ZB38KQ | 5HP | 13100 | 450 | 2*5800 | 2*60 | 22 | 12 | ||
| AX-XQ06HZ | ZB45KQ | 6HP | 1600 | 450 | 2*5800 | 2*60 | 22 | 16 | ||
| model | dimension(mm) | installation sizze(mm) | installation bore | |||||||
| length(L) | width(P) | height(H) | length(A) | width(B) | ||||||
| AX-XQ02HZ | 860 | 310 | 650 | 630 | 350 | φ13 | ||||
| AX-XQ03HZ | 950 | 340 | 850 | 625 | 380 | φ13 | ||||
| AX-XQ04HZ | 950 | 340 | 1260 | 625 | 380 | φ13 | ||||
| AX-XQ05HZ | 950 | 340 | 1260 | 625 | 380 | φ13 | ||||
| AX-XQ06HZ | 950 | 340 | 1260 | 625 | 380 | φ13 | ||||
