RFJ 4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer

RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer

ภาพใหญ่ :  RFJ 4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer

รายละเอียดสินค้า:
Place of Origin: SHENZHEN
ชื่อแบรนด์: compressor
ได้รับการรับรอง: CE
Model Number: 4GE-23Y
การชำระเงิน:
Minimum Order Quantity: 1 pc
ราคา: discussed
Packaging Details: Customerized Packing
Delivery Time: 15-20 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/year
รายละเอียดสินค้า
Condensation Forms: Air-Cooled Type: Steam Condenser
Material: Stainless steel Application Field: Automotive Industry
ได้รับการรับรอง: CSA, RoHS, UR, ISO, UL, CE, SGS, CCC Condition: New
Range of Evaporating Temperature: -5-40 Cold Room Temperature: -10-35
Power of Crankcase Heater (W): 0-120 Power of Condensing Fan Motor (W): 330
HS Code: 8418991000
แสงสูง:

air cooled condenser in refrigeration

,

air cooled condensing unit

Product Description

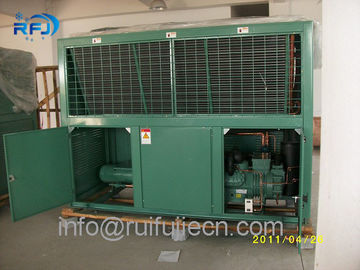

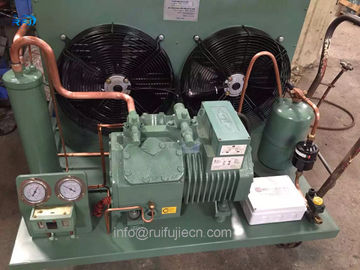

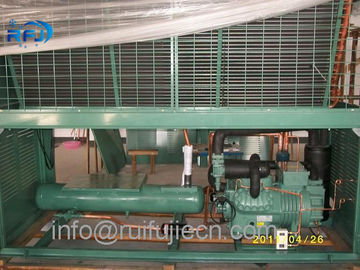

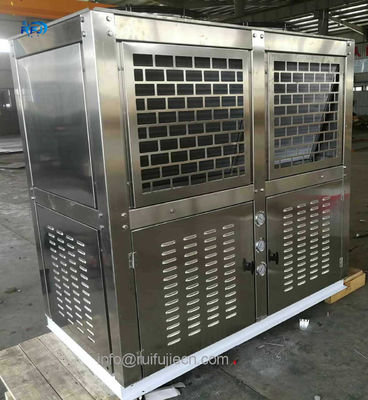

RFJ 4GE-23Y box type air-cooled condenser unit for deep freezer



Features:

1.box-type structure, compact structure, beautiful appearance.

2. Scientific design, steady air flow, can fully exert the condenser heat transfer capacity.
3. Rational performance design, high energy efficiency.
4. Axial fan, good appearance, low noise operation.
5. Maintain easily (panel is easy to remove)
6. Keep in touch well with our suppliers, which can guarantee the raw materials quality to ensure that provide customers with high-quality Products.



Refrigeration industry, cold room project.
Agriculture, food, restaurant,chemical industry.
We offer customize design service.
RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer 0


F: stands for air cooled type

U: stands for condensing unit with u type condenser

BZ: code of compressor, e.g. (BZ)

XXX: stands for air cooled type
Compressor motor rated power(HP or HP code)

X: stands for air cooled type
HM stands for high&medium-temp,
H stands for high temp,
M stands for medium temp,
L stands for low temp,
S stands for quick frozen.

RFJ  4GE-23Y Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer 1


Top Discharge Compressor Condensing Unit (U Type)
Product Description:
1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation.
2.double coils for condenser,eliminating the loss of heat exchange.
3.on the design of top discharge,air circulation consistent with the principle of air flow,no reflow phenomenon and improve the efficiency of heat transfer.
4.with external rotor motor,low noise,low power,large air volume.
5.original compressor,inner of condensing unit with the perfect protection system.

Technical Parameters
performance Modle RFJ030H(U) RFJ040H(U) RFJ050H(U) RFJ060H(U)   performance Modle RFJ080H(U) RFJ100H(U) RFJ120H(U) RFJ1500H(U)
nominal power(HP) 3HP 4HP 5HP 6HP   nominal power(HP) 8HP 10HP 12HP 15HP
Norminal refrigerating capacity
(KW)
5.05 6.05 8.00 10.20   Norminal refrigerating capacity
(KW)
11.00 17.80 20.40 25.60
Motor power
(W)
180W 250W 2*180W 2*250W   Motor power
(W)
2*250W 2*450W 2*450W 2*600W
Dia of fan (mm) Φ400 Φ450 Φ400 Φ450   Dia of fan (mm) Φ450 Φ500 Φ500 Φ550
Number of electric motors (a) 1 1 2 2   Number of electric motors (a) 2 2 2 2
Air Voume
(M3/H)
4500 4500 6220 6220   Air Voume
(M3/H)
9000 13000 13000 16600
Import and export In(mm) Φ16 Φ16 Φ16 Φ22   Import and export In(mm) Φ22 Φ28 Φ28 Φ28
Out (mm) Φ10 Φ10 Φ12 Φ12   Out (mm) Φ12 Φ12 Φ16 Φ16
dimension(mm) L(mm) 750 1000 1270 1270   dimension(mm) L(mm) 1370 1410 1500 1700
w(mm) 650 650 700 700   w(mm) 800 850 900 900
820 820 820 920   920 1030 1130 1130
installation size(mm) a(mm) 420 700 870 870   installation size(mm) a(mm) 970 910 900 1100
b(mm) 720 720 770 770   b(mm) 860 910 960 1060

Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -15℃ ,
2.reserve the right of design modified without prior inform.





Side Discharge Compressor Condensing Unit (Ⅶ Type)
Product Description:
1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation.
2.original compressor,inner of condensing unit with the perfect protection system.
3.on the design of side discharge,and condenser and compressor separate to increase the speed of heat transfer and efficiency maximum.
4.with external rotor motor,low noise,low power,large air volume.

Technical Parameters
performance Modle RFJ080H(VII) RFJ100H(VII)
Norminal refrigerating capacity
(KW)
13.0 16.5
area(㎡) 70 85
Motor power
(W)
2*180W 2*250W
Dia of fan (mm) Φ400 Φ450
Number of electric motors (a) 2 2
Air Voume
(M3/H)
4500x2 5000x2
dimension(mm) L(mm) 1700 1800
w(mm) 700 750
850 940
installation size(mm) a(mm) 1300 1400
b(mm) 660 710



performance Modle RFJ120H(VII) RFJ150H(VII) RFJ200H(VII)
Norminal refrigerating capacity
(KW)
21 25 29
area(㎡) 105 130 130
Motor power
(W)
2*250W 2*450W 2*600W
Dia of fan (mm) Φ450 Φ500 Φ550
Number of electric motors (a) 2 2 2
Air Voume
(M3/H)
5000x2 7000x2 8500x2
dimension(mm) L(mm) 1900 2000 2200
w(mm) 800 870 870
H(mm) 1040 1150 1150
1040 1150 1150
installation size(mm) a(mm) 1500 1600 1800
b(mm) 760 830 830

Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -18℃ ,
2.reserve the right of design modified without prior inform.
