รายละเอียดสินค้า:
การชำระเงิน:
|
| Brand: | Embraco Aspera | Volt: | 220V |
|---|---|---|---|
| Refigerant: | R404 | Color: | Blank |
| Weight: | 12KG | Warranty: | One year |
| แสงสูง: | refrigerant compressor,embraco refrigeration compressors |
||

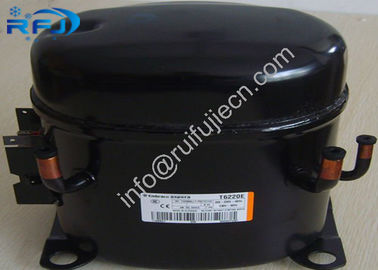

1/2HP R404Aa Embraco Refrigeration Compressors NEK6210GK replace model NE6210GK
- refigerant R-404A
- displacement 8.77 cm3
- motor typ CSIR
Evaporating temperature +55 C
Technical FeaturesDesigned for commercial applications and air conditioners
• Available for R-134a, Blends and R-502, R-22, R-404A, R-407C
• Wide range of applications
• Versions with oil cooling or ventilation
• Models with high and low starting torque
Commercial Applications- Horizontal Freezers
- Merchandisers
- Equipment for supermarket and bakeries
- Equipment for professional ki
| Evaporating Temperature | Cooling Capacity +/-5% | Power Consumption +/-5% | Current Consumption +/-5% | Gas Flow Rate +/-5% | Efficiency +/-7% | |||
| °C | (kcal/h) | (W) | (Btu/h) | (W) | (A) | (kg/h) | (kcal/Wh) | (W/W) |
| -20 | 384 | 447 | 1.525 | 365 | 2,36 | 11,99 | 1,05 | 1,22 |
| -15 | 467 | 544 | 1.855 | 419 | 2,58 | 14,69 | 1,12 | 1,30 |
| -10 | 574 | 668 | 2.278 | 470 | 2,79 | 18,18 | 1,22 | 1,42 |
| -5 | 704 | 819 | 2.795 | 519 | 3,00 | 22,51 | 1,36 | 1,58 |
| 0 | 858 | 998 | 3.405 | 565 | 3,20 | 27,73 | 1,52 | 1,77 |
| 5 | 1.036 | 1.204 | 4.109 | 609 | 3,40 | 33,90 | 1,70 | 1,98 |
| 10 | 1.237 | 1.438 | 4.907 | 650 | 3,59 | 41,06 | 1,90 | 2,21 |
Technical FeaturesDesigned for commercial applications and air conditioners
• Available for R-134a, Blends and R-502, R-22, R-404A, R-407C
• Wide range of applications
• Versions with oil cooling or ventilation
• Models with high and low starting torque
Commercial Applications- Horizontal Freezers
- Merchandisers
- Equipment for supermarket and bakeries
- Equipment for professional kitchens
- Dispenser
- Wine Coolers
- Ice Makers
- Vending Machines
External Features:
| Shape | Material | Diameter (mm) | |
| Suction Connector | Vertical | Copper | 12,77 |
| Discharge Connector | Slanted J | Copper | 8,00 |
| Process Connector | Vertical | Copper | 6,42 |
| Oil Cooler: | |
| Base Plate: | American Standard |
| Tray Holder: | No |
| Weight (kg): | 21,50 |
Application
| Maximum ambient temperature (ºC): | 43 |
| Expansion device: | Capillary/ Valve |
| Cooling: | Fan Cooling |
| Air flow rate: |
Mechanical Data
| Bill of materials: | 943DA11 |
| Starting torque: | High Starting Torque |
| Bore (mm): | 42,85 |
| Stroke (mm): | 11,93 |
| Weight (kg): | 21,50 |
Electrical Data
| Motor type: | CSCR |
| Winding Resistance (25ºC) - Start: | 4,84 |
| Winding Resistance (25ºC) - Run: | 1,70 |
Stocks Always Available:
| Refrigerant R404a Low Back Pressure | |
| NEK2125GK | 7/16HP |
| NEK2134GK | 1/2HP |
| NEK2150GK | 1/2HP |
| NEK2168GK | 1/2HP |
| T2155GK | 3/4HP |
| T2168GK | 3/4HP |
| T2178GK | 1HP |
| NT2192GK | 1HP |
| NJ2192GK | 1.5HP |
| NJ2212GK | 1.25HP |
| Refrigerant R404a Medium/High Back Pressure | |
| NEK6210GK | 1/2HP |
| NE9213GK | 3/4HP |
| T6220GK | 7/8HP |
| T6222GK | 3/4HP |
| NJ9226GK | 1HP |
| NJ9232GK | 1.5HP |
| NJ9238GK | 1.75HP |
