| Control Type: | Digital | Application: | Refrigeration Parts |
|---|---|---|---|
| Colour: | Black | Usage: | Air Conditioner, Refrigerator |
| Export Markets: | Global | Power supply: | 110, 230Vac |
| Material: | Plastic | Cooling Purpose: | Air Conditioner |
| Display Type: | LED | Control Method: | Electronic Type |
| แสงสูง: | refrigeration and air conditioning tools and equipment,danfoss expansion valve |
||

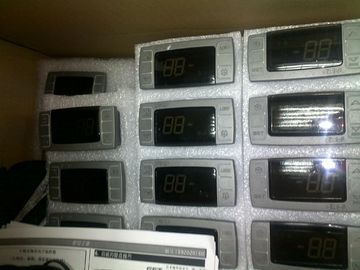

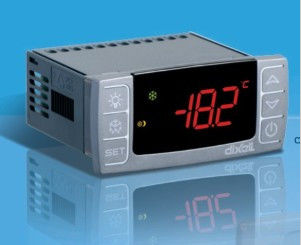

Dixell Refrigeration Compressor Parts Digital Refrigerator Temperature Controller XR Series
Specifications:
DIGITAL CONTROLLER WITH "OFF CYCLE" DEFROST
Generals
Power supply: 110, 230V AC
Probe inputs
Thermostat: NTC
Digital inputs
Alarm, start defrost, AUX, door switch, pressure switch: Configurable
Relay outputs
Compressor: 8A, 20A optional
Other
Hot Key: Present
Buzzer: Optional (available only with 8A compr. Relay)
DIGITAL CONTROLLER WITH DEFROST AND FANS MANAGEMENT
Description:
Generals
Power supply: 110, 230VAC
Probe inputs
Thermostat: NTC
Defrost: NTC
Digital inputs
Alarm, start defrost, AUX, door switch, pressure switch: Configurable
Relay outputs
Compressor: 8A, 16A, 20A optional
Sbrinamento: 8A
Ventole: 8A, 5A
Possible combinations: 8A, 8A, 8A - 16/20A - 8A, 5A
Other
Hot Key: Present
Buzzer: Optional (available only with 8A compr. Relay)
Technical features:
1. Housing: Self extinguishing ABS
2. Mounting: Panel mounting in a 29X71mm panel cut-out
3. Power supply: 12VAC/DC or 24VAC/DC or 24VAC or 110VAC or 230VAC ± 10% 50/60Hz
4. Power absorption: 3VA max
5. Display: Red LED
6. Inputs: Up to 2 NTC probes
7. Relay ouputs: Up to 3 relay 20(8)A, 16(5)A, 8(3)A or 5(2)A; 250VAC
8. Data storing: EEPROM memory
9. Operating temperature: 0÷ 60° C (32÷ 140° F)
10. Storage temperature: -25÷ 60° C (-13÷ 140° F)
11. Relative humidity: 20÷ 85% (non condensing)
12. Resolution: 0, 1° C or 1° C or 1° F
13. Accuracy: Better than 1% of F. S.
More Models as below:
| XR01CX-5N0C1 | XR02CX |
| XR03CX-5N0C0 | XR03CX |
| XR04CX-5N0C1 | XR04CX |
| XR06CX-5N0C1 | XR06CX |
| XR10CX-5N0C1 | XR10CX |
| XR30CX-5N0C1 | XR30CX |
| XR40CX-5N0C1 | XR40CX |
| XR60CX-5N0C1 | XR60CX |
| XR30CX-5R0C1 | XR20CX |
| XR60CX-5R0C1 |
