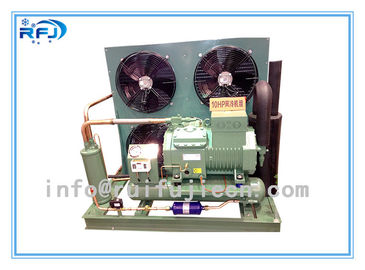

10hp Refrigeration Condensing Units for chiller room 4VES-10 R22

R22 10hp Original air cooled Condensing Unit for cold room 4VES-10

1. using on the cold room, fishing-boat...

2. Wide range of application

3. Original type and for low temperature


Specifications:

1.1.1 Product Description

Compressor condensing unit is widely used for different temperature range, applicable in cold storage, chiller room, freezer room etc.

With Features:
1. Euiped with Semi-Hermetic compressor, relianble quality;
2. Open type condensing unit, easy for installation and maintenance;
3. Cooling Type: Air-cooled;
4. Used for wide range temperature, middle and high: +5C to -5C, middle and low: -15 to -25C;
5. Copper tube and alumimum fin type heat exchanger;
6. Refrigerant R404A and R22 are both available.

1. Horse Power:3-40HP
2. Voltage:380V/50HZ/3Phase,440-480V/60HZ/3PH

3. Features:

1) High efficiency, Good reliability, Low noise, Low vibration, No leakage

2) Wide range of application

   The machine uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.

3) Excellent performance
   The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.

4) Accessories: all are world-famous brands, such as  filter,   pressure controller, Emerson oil separator, Emerson gas separator, Harris high quality welding rods, and so on.

5) Reliable safety device
  The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.

6) Air-cooling and water-cooling Condensing units are both available.


4. We can supply more models from 2HP to 50HP of Air cooler
Condensing unit as below:
