รายละเอียดสินค้า:
การชำระเงิน:
|
| Piston Type: | Scroll | Power Source: | AC Power |
|---|---|---|---|
| Configuration: | Stationary | Drive Mode: | Electric |
| Horse Power: | 5HP | Refrigerant: | R407C/R134A |
| Sightglass: | Compressor with sightglass | Qty/one pallet: | 16pcs |
| Weight: | 38KG | Application: | heat pump water heater application |
| Advantage: | Vapor injection type | Voltage: | 380v/50hz |
| Refrigeration capacity: | 14KW | Power Input: | 4.46KW |
| electricity: | 8.4A | ||
| แสงสูง: | copeland ac compressor,commercial refrigeration compressor |
||

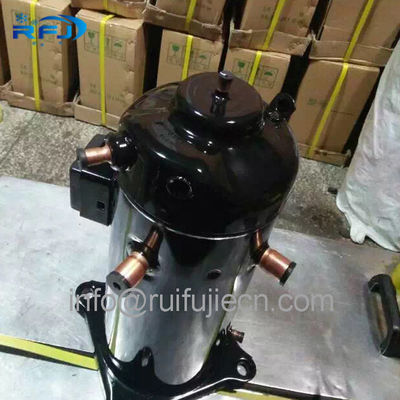

R404A refrigerant 5 HP Refrigeration Scroll Compressor Copeland ZW61KSE-TFP-542 FOR heat pump
Specifications:
Copeland:
1.All models on sale
2.Competitive Price
3.Continuous Supply Capacity
Copeland Features:
1.Low energy consumption
2.Stable operating
3.Easy to dismantle and install
We also suppy following scroll compressor.
a.Sanyo scroll compressor,
b.Daikin scroll compressor.
c.Copeland ZF/ZB/ZW/ZP/ZR.
d. scroll compressor.
e. Hitachi scroll compressor.
f. Performer scroll compressor
More ZW models as below
| No | Model | Horse Power | Refrigerant | |
| 1 | ZW30KA-PFS-582 | 2.5HP | R22/220V | |
| 2 | ZW34KA-TFP-582 | 3HP | R22/380V | |
| 3 | ZW61KA-TFP-542 | 5HP | ||
| 4 | ZW108KA-TFP-522 | 9HP | ||
| 5 | ZW30KAE-PFS-582 | 2.5HP | R410/220V | |
| 6 | ZW34KAE-TFP-582 | 3HP | R410/380V | |
| 7 | ZW61KAE-TFP-542 | 5HP | ||
| 8 | ZW108KAE-TFP-522 | 9HP | ||
| 9 | ZW30KS-PFS-582 | 2.5HP | R22/220V | |
| 10 | ZW34KS-TFP-582 | 3HP | R22/380V | |
| 11 | ZW61KS-TFP-542 | 5HP | ||
| 12 | ZW108KS-TFP-522 | 9HP | ||
| 13 | ZW30KSE-PFS-582 | 2.5HP | R410/220V | |
| 14 | ZW34KSE-TFP-582 | 3HP | R410/380V | |
| 15 | ZW61KSE-TFP-542 | 5HP | ||
| 16 | ZW108KSE-TFP-522 | 9HP | ||
| Model | Unit | ZW30KA | ZW34KA | ZW61KA | ZW108KA | |
| Refrigerant | R22 | R22 | R22 | R22 | ||
| Heating Capacity | Watt | 9030 | 10097 | 18143 | 33900 | |
| Input Power | watts | 2314 | 2586 | 4600 | 7550 | |
| Motor type | PFS | TFP | TFP | TFP | ||
| Nominal Input Rating | HP | 2.5 | 3 | 5 | 9 | |
| Displacement | M3/h | 7.1 | 8 | 14.4 | 24.9 | |
| Displacement | cm3/rev | 41 | 46.2 | 82.6 | 142.9 | |
| Weight | kg | 22.2 | 22.2 | 30 | 62 | |
| Current | A | 10.7 | 4.5 | 8.8 | 13.7 | |
| Mass flow | g/s | 43.5 | 48 | 88 | 166 | |
| Rated Voltage | V | 220 | 380 | 380 | 380 | |
| Locked Rotor Amps | A | 58.4 | 31.6 | 59 | 100 | |
| Rated load current | A | 13.6 | 6.4 | 10.1 | 17.3 | |
| Oil charge volume | Initial | L | 0.74 | 0.74 | 1.36 | 3.25 |
| Refill | L | 0.56 | 0.56 | 1.24 | 3.14 | |
| Max Operating current | A | 17.2 | 7 | 11.8 | 16.8 | |
| Max continuous current | A | 18.3 | 8.5 | 13.6 | 24.2 | |
| Capacitor Rating | 80MFD/370VAC | |||||
| 50HZ | ||||||
| Model | Unit | ZW21KAE | ZW30KAE | ZW34KAE | ZW61KAE | ZW108KAE | |
| Refrigerant | R134a | R407C | R407C | R407C | R407C | ||
| Heating Capacity | Watt | 4589 | 8750 | 9785 | 17648 | 33010 | |
| Input Power | watts | 1130 | 2337 | 2610 | 4647 | 7500 | |
| Motor type | PFZ | PFS | TFP | ||||
| Nominal Input Rating | HP | 1.5 | 2.5 | 3 | 5 | 9 | |
| Displacement | M3/h | 29 | 7.1 | 8 | 14.4 | 24.9 | |
| Displacement | cm3/rev | 22.5 | 41 | 46.2 | 82.4 | 142.9 | |
| Weight | kg | 5.1 | 22.2 | 22.2 | 30 | 62 | |
| Current | A | 4.8 | 10.8 | 4.5 | 8.1 | 13.9 | |
| Mass flow | g/s | 21.9 | 41.5 | 45.8 | 82.6 | 160 | |
| Rated Voltage | V | 220/240 | 220 | 380 | 380 | 380 | |
| Locked Rotor Amps | A | 44 | 58.4 | 31.6 | 59 | 100 | |
| Rated load current | A | 7.9 | 15.3 | 6.6 | 10.2 | 17.5 | |
| Oil charge volume | Initial | L | 0.74 | 0.74 | 0.74 | 1.36 | 3.25 |
| Refill | L | 0.56 | 0.56 | 0.56 | 1.24 | 3.14 | |
| Max Operating current | A | 7.1 | 17.7 | 7.1 | 12.6 | 17 | |
