| Packing: | Carton | Export Markets: | Global |
|---|---|---|---|
| Power: | Manual | Refrigerant: | R22/R134A/R507 |
| Material: | Brass | Application: | Refrigeration Parts |
| แสงสูง: | refrigeration and air conditioning tools and equipment,refrigerator tools |
||

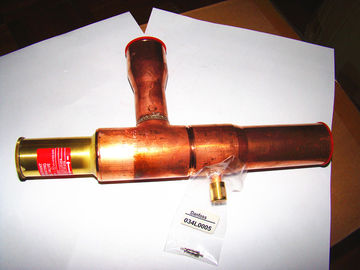

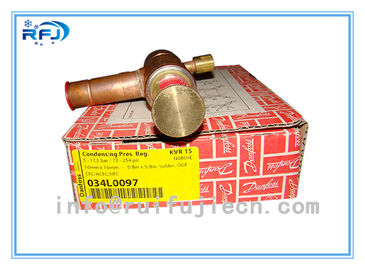

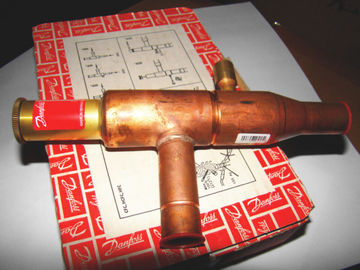

refrigeration controls Condensing Pressure Regulator model KVR
Specifications:
Condensing pressure regulator
Refrigerant: R22/R134A/R507
Regular system KVR and NRD is used to maintain a constant and sufficiently high condenser and receiver pressure in refrigeration and air conditioning plant with air-cooled condensers.
Please find More Models as below:
| Model KVR | ||||||||||
| Part Number | Model Number | Connections | Rated Capacity (kw) | Rated Hot | ||||||
| R22 | R134a | R404a | R407C | R22 | R134a | R404a | R407C | |||
| Condensing Pressure Regulator | ||||||||||
| 034L0091 | KVR12 | 1/2” FL | 50.4 | 47.3 | 36.6 | 54.5 | 13.2 | 11.6 | 12 | 14.3 |
| 034L0097 | KVR15S | 5/8”ODS | ||||||||
| 034L0094 | KVR22S | 7/8”ODS | ||||||||
| 034L0095 | KVR28S | 1-1/8”ODS | 129 | 121 | 93.7 | 139.3 | 34.9 | 30.6 | 34.9 | 37.7 |
| 034L0100 | KVR35S | 1-3/8”ODS | ||||||||
| Type | Sodering (inch) | Code |
| KVR12 | 1/2 | 034L0093 |
| KVR15 | 5/8 | 034L0097 |
| KVR22 | 7/8 | 034L0094 |
| KVR28 | 1 1/8 | 034L0095 |
| KVR35 | 1 3/8 | 034L0100 |
| NRD | 1/2 | 020-1132 |
