รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อแบรนด์: | Copeland | แรงดันไฟฟ้า: | 200/230 V, 60HZ, 3 เฟส |
|---|---|---|---|
| ความจุ: | 240000 Btu ต่อชั่วโมง | มิติ: | 0.025 cbm / pc |
| น้ำหนักสุทธิ: | 138 กก | สารทำความเย็น: | R407C |
| ปัจจุบัน (): | 67.80 | EER: | 11.10 |
| แสงสูง: | copeland ac compressor,copeland a c compressor |
||
|
Product Name
|

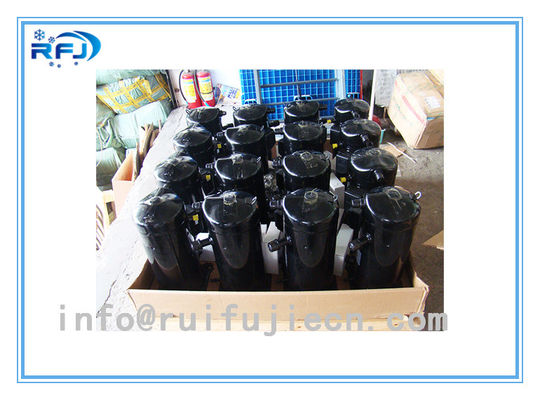

Hermetic refrigeration and scroll type Copeland compressor ZR250KCE-TE5
|
|
Material
|
stainless steel
|
|
Cooling capacity
|
240000 Btu/hr
|
|
Voltage
|
200/230V, 3 Phase, 60Hz
|
|
Refrigerant
|
R407C
|
|
Weight
|
138 kg
|
|
Dimension
|
0.025 cbm/pc
|
|
Leading time
|
about 10 days once the order is confirmed
|
Copeland Scroll air conditioner Compressor ZR Series ZR250KCE-TW5-522
| Brand name | copeland compressor |
| Place of origin | Thailand |
| Model | ZR250KCE-TW5-522 |
| Horse power | 20HP |
| Air displacement m3/h | 5.92 |
| Refrigeranting output(w) | 5920 |
| Power page(w) | 1870 |
| Weight(kg) | 26.3 |
| Height(mm) | 382.8 |
| Lead time | 10 working days |
| Type of compressor | d series copeland compressor |
Phase |
Model | Horse Power/HP | Displacement/ m3/h | ARI 7.2/54.4ºC | Weight/ Kg | Height/ mm | |
| Cooling /W | Input Power/ W | ||||||
| 1 Phase | ZR16K3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| 1 Phase | ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 |
| 1 Phase | ZR20K3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 |
| 1 Phase | ZR22K3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 |
| 1 Phase | ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 |
| 1 Phase | ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 |
| 1 Phase | ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 |
| 1 Phase | ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 |
| 1 Phase | ZR32K3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 |
| 1 Phase | ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 |
| 1 Phase | ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 |
| 1 Phase | ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 |
| 1 Phase | ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 |
| 1 Phase | ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 |
| 3 Phase | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| 3 Phase | ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 |
| 3 Phase | ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 |
| 3 Phase | ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 |
| 3 Phase | ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 |
| 3 Phase | ZR32K3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 |
| 3 Phase | ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 |
| 3 Phase | ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 |
| 3 Phase | ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 |
| 3 Phase | ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 |
| 3 Phase | ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 |
| 3 Phase | ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 |
| 3 Phase | ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 |
| 3 Phase | ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 |
| 3 Phase | ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 |
| 3 Phase | ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 |
| 3 Phase | ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 |
| 3 Phase | ZR68KCE-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 |
| 3 Phase | ZR72KCE-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 |
| 3 Phase | ZR81KCE-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 |
| 3 Phase | ZR84KCE-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 |
| 3 Phase | ZR94KCE-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 |
| 3 Phase | ZR108KCE-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 |
| 3 Phase | ZR125KCE-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 |
| 3 Phase | ZR144KCE-TFD | 10 | 28.8 | 29890 | 8955 | 92 | 542 |
| 3 Phase | ZR160KCE-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 |
| 3 Phase | ZR250KCE-TW5 | 15 | 42.1 | 45170 | 13400 | 112 | 596 |
